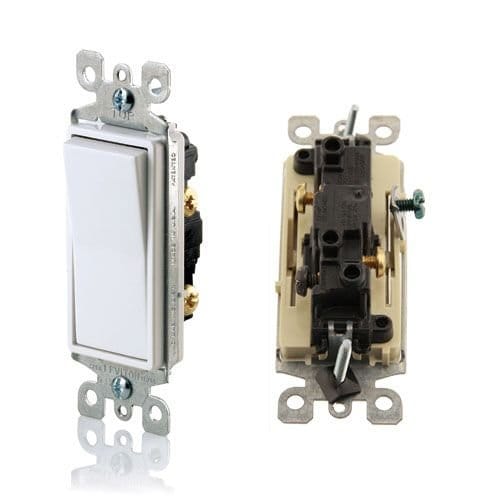

Mobile Home Light Switch With 3 Wires: Easy Installation Guide

Are you struggling to figure out how to install or replace a mobile home light switch with 3 wires? Understanding the wiring can feel confusing, but it doesn’t have to be.

Whether you’re upgrading your lighting or fixing a faulty switch, knowing exactly how those three wires work will save you time and keep you safe. You’ll discover clear, simple steps to handle your mobile home light switch with confidence. Keep reading, and you’ll get the answers you need to get your lights working perfectly again.

Types Of Mobile Home Light Switches

Mobile homes have specific needs when it comes to light switches. Choosing the right type can enhance safety and efficiency. Each type offers unique benefits and features. Understanding these can help you make informed decisions for your mobile home.

Single-pole Switches

Single-pole switches are the simplest type. They control one light or fixture from one location. These switches have two terminals and a ground wire. They’re ideal for small spaces or rooms with one entrance. Easy to install, they require basic wiring skills.

Three-way Switches

Three-way switches are used in larger spaces. They control a light from two different locations. This type is useful in hallways or rooms with multiple entrances. They have three terminals and a ground wire. Installation requires more wiring knowledge. Proper setup ensures seamless lighting control.

Smart Switch Options

Smart switches offer advanced features. They allow remote control via smartphone apps. Some models integrate with voice assistants. These switches can enhance convenience and energy efficiency. They require a neutral wire for installation. Consider smart switches for modern and tech-savvy homes.

Identifying The Three Wires

Understanding the three wires in a mobile home light switch is essential for safe and correct wiring. Each wire serves a different purpose and has a unique color code. Identifying these wires helps prevent electrical hazards and ensures the switch works properly.

Knowing which wire is hot, neutral, or ground can make installation easier. It also helps when troubleshooting electrical issues in your mobile home. Let’s explore the characteristics of each wire to recognize them clearly.

Hot Wire

The hot wire carries electricity from the power source to the switch. It usually has a black or red color. This wire is live and can cause electric shock if touched. It connects to the switch terminal that controls the flow of power to the light.

Neutral Wire

The neutral wire completes the electrical circuit by carrying current back to the power source. It is typically white or gray. This wire is safe to touch but should still be handled with care. It connects to the light fixture and balances the flow of electricity.

Ground Wire

The ground wire protects against electrical faults by directing excess electricity safely into the earth. It is usually green or bare copper. This wire does not carry current under normal conditions. It connects to the switch’s grounding screw or the metal box for safety.

Tools And Materials Needed

Setting up a mobile home light switch with 3 wires requires more than just the switch itself. Having the right tools and materials ready can make the process smoother and safer. Before you start, make sure you gather everything you need to avoid interruptions and reduce the risk of mistakes.

Basic Electrical Tools

You’ll need a few essential tools to handle wiring and switch installation properly. A good-quality screwdriver set, especially a flathead and Phillips, is crucial for removing switch plates and securing wires. Wire strippers will help you remove insulation without damaging the copper inside, and a voltage tester is a must-have to check if wires are live before you touch them.

Needle-nose pliers can make bending and twisting wires easier in tight spots. Also, having electrical tape on hand is helpful for securing wire connections and preventing shorts. Don’t underestimate the value of a small flashlight or headlamp if you’re working in a dimly lit area.

Safety Gear

Handling electricity comes with risks, so your safety gear is non-negotiable. Insulated gloves protect your hands from accidental shocks and cuts when you work with wires. Safety glasses shield your eyes from sparks or debris, especially if you’re drilling or cutting near electrical components.

Consider wearing shoes with rubber soles to reduce the chance of grounding yourself. Also, keep a fire extinguisher nearby that’s rated for electrical fires—you never know when a small spark might turn dangerous. Would you risk skipping on safety just to save a few minutes? It’s worth investing a little extra effort to protect yourself.

Switch And Wiring Components

The right switch for a mobile home usually comes with three wires: a hot wire, a neutral wire, and a ground wire. Make sure you buy a switch rated for your home’s voltage and amperage needs. Using the wrong switch can cause malfunctions or safety hazards.

You’ll also need appropriate wire connectors, like wire nuts, to join wires securely. If the existing wiring is damaged or outdated, consider replacing it with new 14 or 12 gauge electrical wire, depending on your circuit requirements. Having extra wire on hand can save you from last-minute trips to the hardware store.

Credit: www.reddit.com

Preparing For Installation

Preparing for the installation of a mobile home light switch with 3 wires is crucial. It ensures safety and smooth work. Taking time to prepare avoids mistakes and accidents. Follow clear steps to get ready before starting the actual installation.

Turning Off Power

Safety starts with turning off the power. Locate the main breaker or fuse box. Switch off the power to the room or circuit where you work. Use a lock or tag on the breaker for extra safety. This prevents accidental power restoration during work.

Testing Wires

Testing wires is essential before handling them. Use a voltage tester or multimeter to check wires. Confirm that no current flows in the wires. Test each wire separately. This step protects you from electric shocks and confirms power is off.

Removing Old Switch

Remove the old switch carefully. Unscrew the switch plate and then the switch itself. Gently pull the switch out from the wall box. Note the position and color of each wire connected. Disconnect wires one by one, keeping track of their places.

Step-by-step Wiring Process

Wiring a mobile home light switch with three wires might seem tricky at first, but breaking it down makes the process clear and manageable. Each wire plays a crucial role in ensuring your switch works safely and effectively. Let’s walk through how to connect each wire and mount your switch properly.

Connecting The Hot Wire

The hot wire carries power from your electrical panel to the switch. It’s usually black or red. Start by turning off the power at your breaker to stay safe.

Strip about half an inch of insulation from the wire’s end. Attach the hot wire to the brass-colored terminal on the switch. Make sure the connection is tight so the wire doesn’t come loose over time.

Attaching The Neutral Wire

The neutral wire completes the circuit by carrying current back to the electrical panel. It’s often white. Unlike older switches, many modern light switches require connecting this wire for proper function.

Strip the wire and connect it to the silver-colored terminal. If your switch doesn’t have a neutral terminal, you might need to cap this wire separately or consult your wiring diagram.

Securing The Ground Wire

The ground wire is usually green or bare copper and prevents electrical shocks. It connects the switch to your home’s grounding system.

Wrap the ground wire around the green grounding screw on the switch. Tighten the screw firmly. If your switch box is metal, also connect the ground wire to the box for extra safety.

Mounting The Switch

Once all wires are connected, gently push them back into the electrical box. Avoid pinching or bending wires sharply. Use the screws provided to secure the switch to the box.

Attach the switch plate cover and turn the power back on. Test the switch by toggling it on and off. If it doesn’t work, double-check your connections before assuming the switch is faulty.

Testing The New Switch

Testing the new mobile home light switch with three wires ensures it works safely and properly. This step is important to avoid electrical issues and confirm correct installation. Follow these checks carefully to verify the switch functions as expected.

Restoring Power

Start by turning the main power back on at the circuit breaker. Make sure no one touches the wires during this process. Check that power has returned to the switch by using a voltage tester or a small bulb. Never assume power is off until tested.

Switch Function Check

Flip the switch up and down to test its operation. The light should turn on and off without flickering or delay. Listen for any unusual sounds like buzzing. Confirm all connected lights respond correctly. If the switch controls multiple fixtures, test each one.

Troubleshooting Tips

• If the light does not turn on, recheck the wiring connections.
• Ensure the ground wire is securely attached to the switch and metal box.
• Use a multimeter to verify voltage at the switch terminals.
• Look for loose wires or damaged insulation that may cause shorts.
• Replace the switch if it feels hot or shows visible damage.

Safety Tips And Best Practices

Working with a mobile home light switch that has three wires requires attention to safety. Proper handling reduces risks of electrical shocks and fires. Following best practices ensures the wiring stays secure and functional for a long time.

Avoiding Common Mistakes

Never connect wires without turning off the power supply first. Mixing up the wires can cause short circuits or damage the switch. Always check wire colors carefully and match them as per the wiring diagram. Avoid forcing wires into terminals; this may break the connection or wire.

Using Proper Wire Connectors

Use wire connectors designed for three-wire setups. Twist-on wire nuts offer a strong, insulated connection that prevents wires from coming loose. Avoid using electrical tape alone to join wires; it can degrade over time. Choose connectors rated for the wire gauge and environment of your mobile home.

Regular Maintenance

Inspect the switch and wiring periodically for wear or damage. Tighten any loose screws or connections to maintain a stable circuit. Replace any frayed or cracked wires immediately to avoid hazards. Clean the switch area to prevent dust buildup, which can affect performance.

Credit: www.homedepot.com

Credit: www.doityourself.com

Frequently Asked Questions

What Are The Three Wires In A Mobile Home Light Switch?

The three wires typically include a live (hot) wire, a neutral wire, and a ground wire. These allow safe and effective control of the light fixture in a mobile home.

How Do I Identify Wires In A Mobile Home Light Switch?

Use a voltage tester to identify the live wire. The neutral wire is usually white, and the ground wire is green or bare copper. Always turn off power before testing.

Can I Replace A Mobile Home Light Switch With 3 Wires?

Yes, you can replace it. Match the new switch’s terminals with the existing wires: live, neutral, and ground. Ensure the power is off before starting the replacement.

Why Does My Mobile Home Light Switch Have Three Wires?

Three wires allow proper electrical flow and grounding, increasing safety and functionality. The third wire often serves as a ground or traveler in multi-way switches.

Conclusion

A mobile home light switch with 3 wires offers simple control and safety. It connects power, load, and ground wires easily. Knowing how to install it helps avoid problems and keeps your home bright. Choose the right switch for your wiring setup.

Always turn off power before working with wires. This small step makes a big difference. A well-installed switch works smoothly and lasts longer. Keep your mobile home safe and comfortable with the right light switch. Simple, smart, and effective.
